SWIVEL JOINTS

Swivel joints use hardened precision ground ball races and stainless steel seal faces to promise its long life.

LA-C
Prodcts line and mechanical structure are combined into one body
Used for:oil and chemical products
Handle type:hydraulic and manual

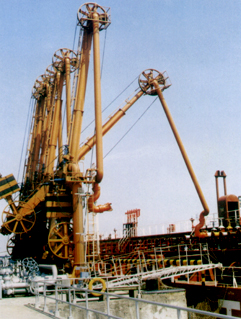

LA-C PORT LOADING ARMS

LA-C Port Loading Arms is sheave structure type,Primary and secondary counterweight consist rotary balanced system make Arms easliy balance.
LA-C Port Loading Arms is designed to be both maual and hydraulic type.

Size:8" 10" 12" 16"

Standard design incorporates:

All steel construction
Low torque swivel joints provide easy handing
Mechanical parking locks
Handing lines(only for manual type)
Rotary balance system
High flow rates at low pressure drop
Seal Material:--Nitrile
                         --Viton
                         --PTFE
                         --Special

Auxiliary Accessories:

Alarm system
Insulating flange
Manual Vacuum breaker
Automatic Vacuum breaker

LA-C PORT LOADING ARMS
